Подробная информация о продукте:
Оплата и доставка Условия:
|
| Женский разъем OBD2: | стандартный | Terminals of OBD2 female connector: | copper, nickel-plated or gold-plated |
|---|---|---|---|
| Штифты сзади: | Прямой угол 90 градусов | Housing material: | PA66 |
| Working Temperature: | −25℃ ~ +100℃ | Сопротивление на контакт: | Максимально 3 Ом. |
| Выделить: | obd female connector,obd2 connector female,right angle obdii connector |
||

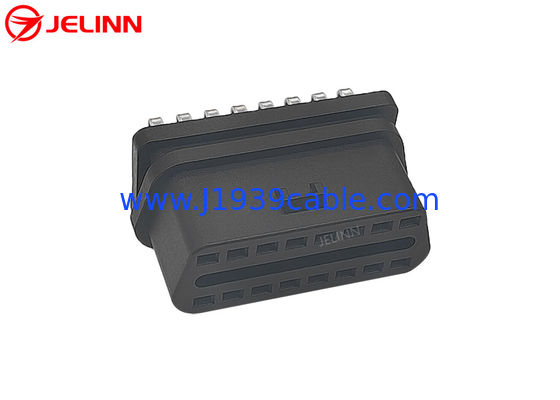

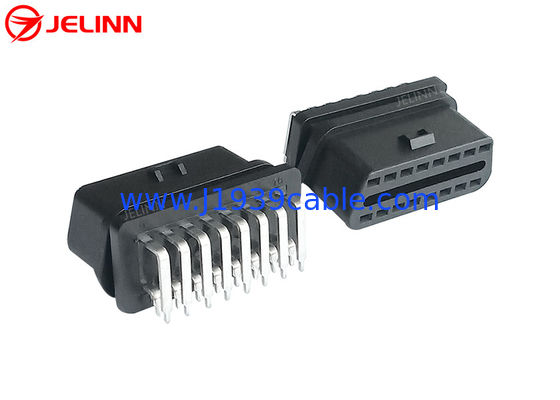

16 Pin OBD 2 OBD2 OBDII Female Connector With Right Angle Pins Bent Towards the Wide Side
Specification
| OBD2 female connector | standard |
| Terminals of OBD2 female connector | copper, nickel-plated or gold-plated |
| Pins at the back | right angle 90 degree |
| Number of terminals | 16 |
| Material of OBD2 female connector | PA66 |
| Contact Resistance | 3 ohm max. |
| Insulation Resistance | 5M ohm min. |
| Working Temperature | −25℃ ~ +100℃ |
| Warranty | 1 year |
This is an OBD2 OBDII female connector, not OBD1.
We made the plastic mold of this OBD2 OBDII female connector by ourselves because we have a full set of machines and equipments and an excellent team of staff for making plastic molds. We also have injection molding machines which can manufacture these OBD2 OBDII female connectors according to the mold.
The OBD2 OBDII female connector is with quality endurable terminals, which are more suitable for a test or diagnostic environment where the devices (connected to the OBD2 female connector) are plugged and unplugged frequently.

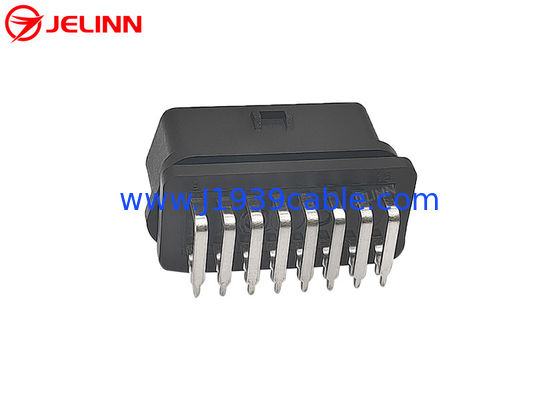

The pins at the back of this OBD2 OBDII female connector are right angle 90-degree. We also have OBD2 OBDII female connectors with other shapes of pins at the back, such as straight pins.
Pin assignment or pin out
The pin assignment or pin out of 16-Pin J1962 OBD2 OBDII female connector is like this:
Application
These OBD2 OBDII female connectors can be used to manufacture OBD2 adapters, OBD2 cables or OBD2 splitter Y cables. They can also be assembled into telematics, M2M devices, IoV (Internet of Vehicles) devices.
Sending an inquiry
If you haven’t found or don’t have time to look for the J1939, OBD2 or J1708 cables, adapters or connectors in our website, feel free to let us know what J1939, OBD2 or J1708 cables, adapters or connectors you need by sending an inquiry (If you have a picture, please attach it in the inquiry). We can also customize any J1939, OBD2 or J1708 cables, adapters or connectors for you.
